Signage Lighting

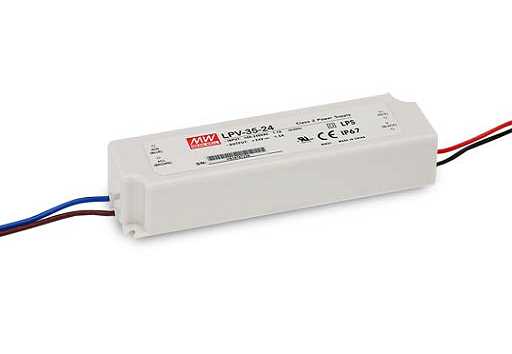

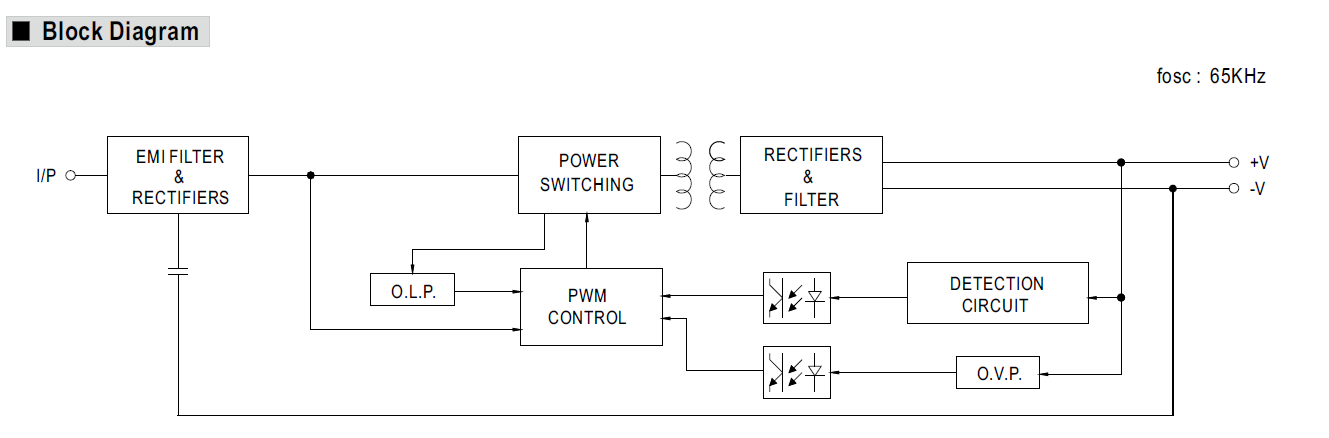

LPV-35 series

• Constant voltage design
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Fully encapsulated with IP67 level

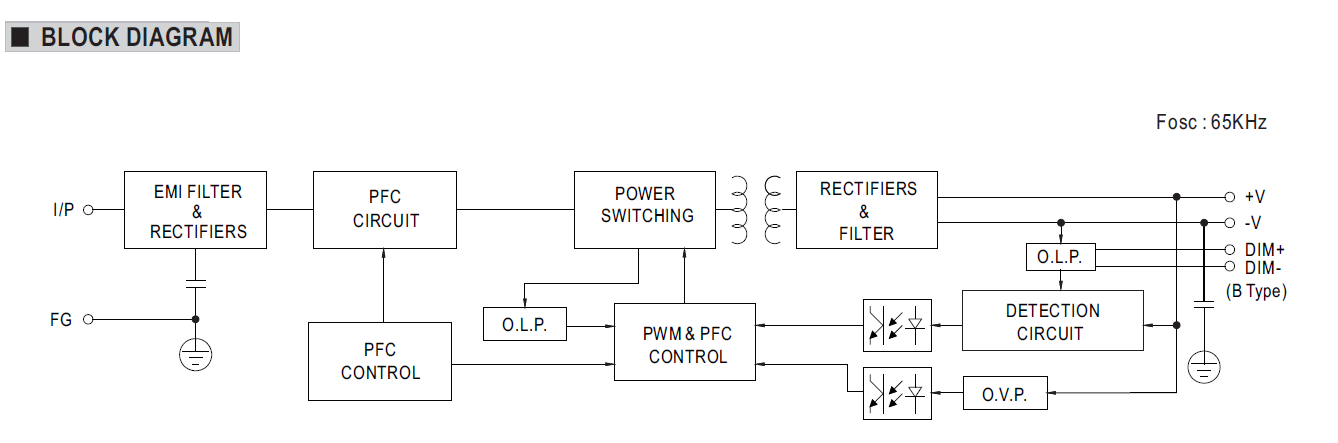

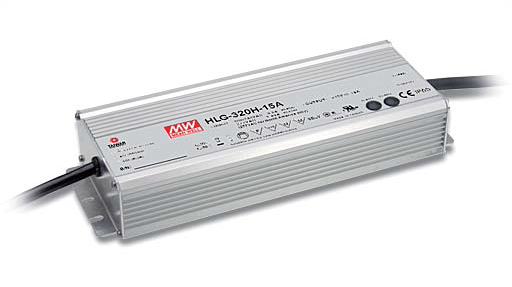

HLG-320H series

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency of up to 94%, with the fanless design, the entire series can operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for an LED lighting system.

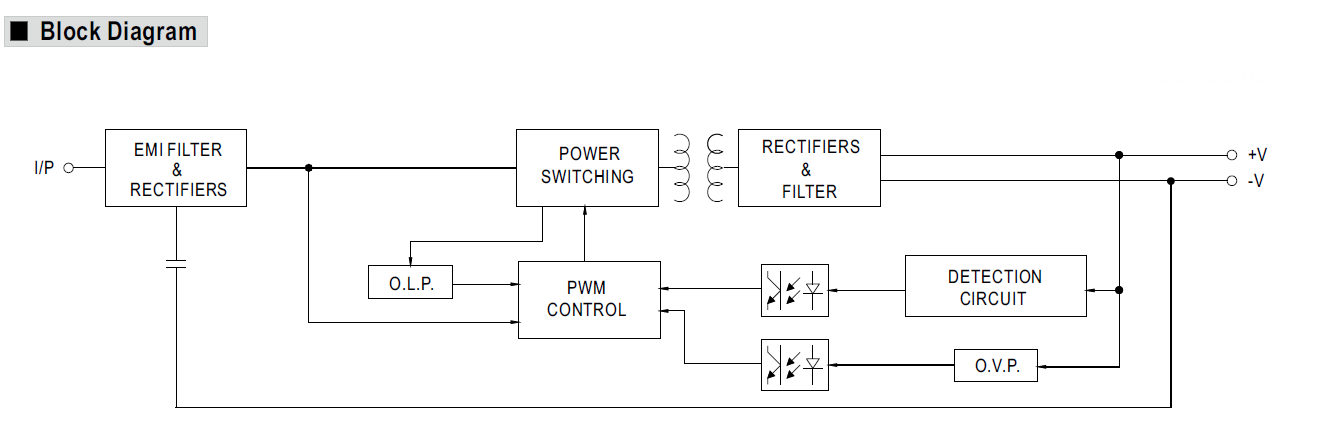

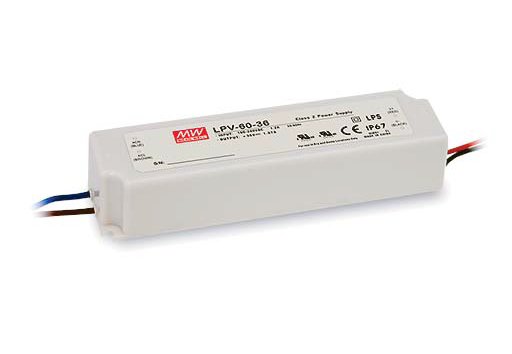

LPV-60 series

• Constant voltage design
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Fully encapsulated with IP67 level

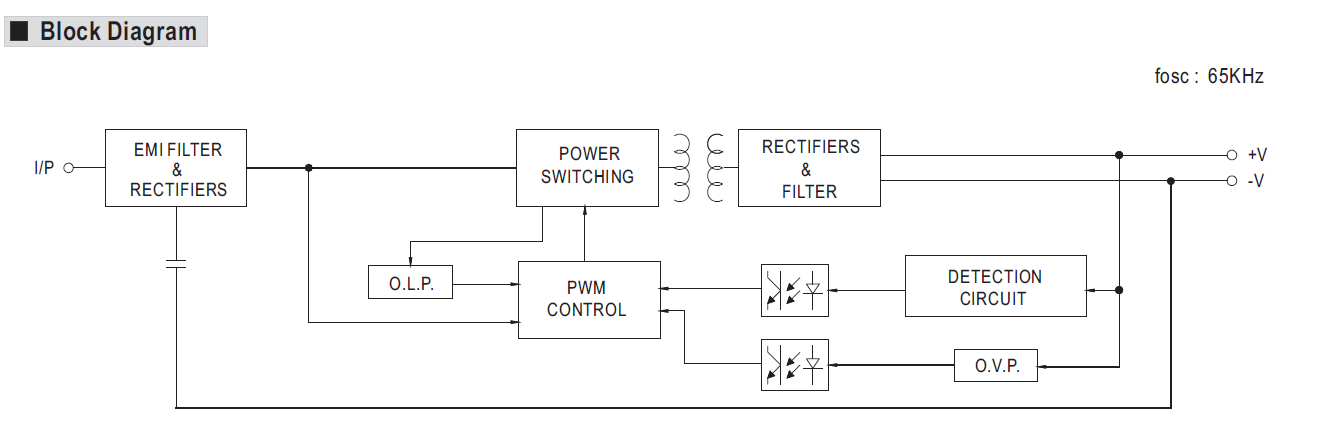

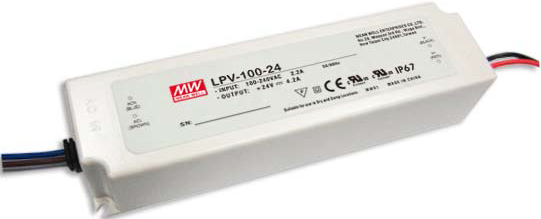

LPV-100 series

• Constant voltage design
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Fully encapsulated with IP67 level
